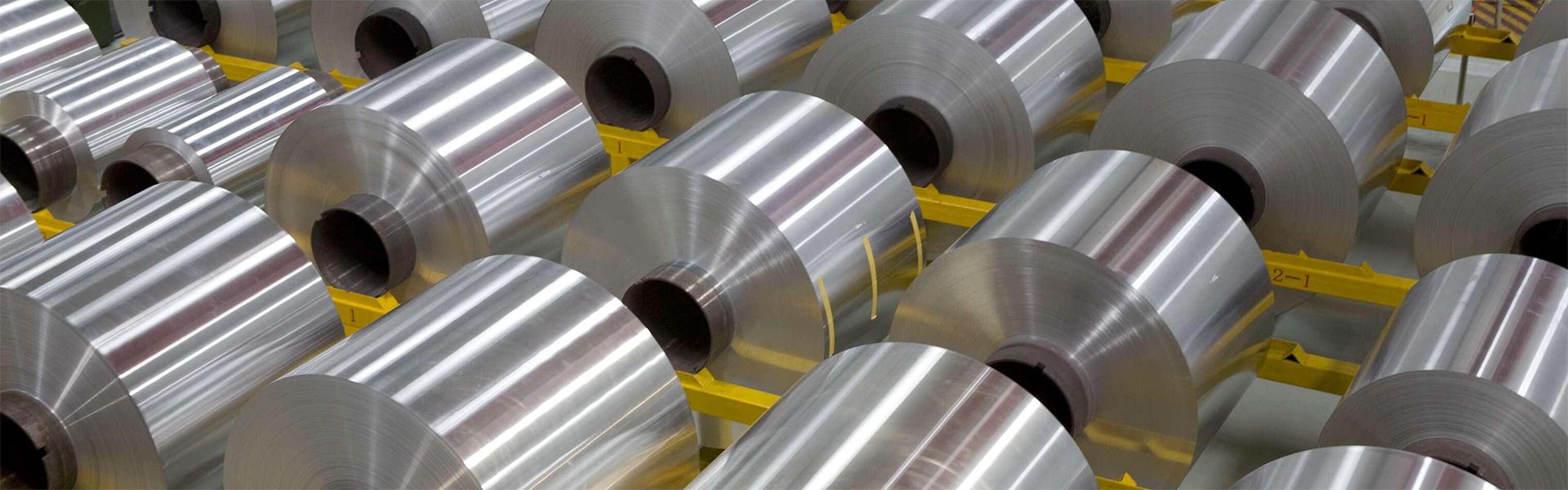

Aluminum Coils
China’s Aluminum Material Expert
Yutwin New Materials
Yutwin New Materials specializes in the production of aluminum coils and sheets in a wide range of alloys, grades, and specifications, offering stable quality, flexible customization, and reliable supply to meet the diverse needs of different industries. Watch on YouTube
Specifications
| Item | Specification |
|---|---|
| Thickness | 0.2 – 6.0 mm (Customizable: 0.1 – 12.0 mm) |
| Width | 100 – 2600 mm; Slit strip width: 10 – 600 mm |
| Alloy / Grade | 1000 Series: 1050, 1060, 1070, 1100, 1235, 1145, 1200, 1230, 1350. 2000 Series: 2024, 2A11, 2A12, 2A14, 2A17. 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, 3A22. 5000 Series: 5005, 5052, 5056, 5083, 5086, 5182, 5454, 5754, 5059, 5A02, 5A03, 5A05, 5A06. 6000 Series: 6061, 6082, 6062, 6063, 6101, 6016, 6022, 6060, 6005. 7000 Series: 7005, 7A04, 7A09, 7050, 7075. 8000 Series: 8006, 8011, 8021, 8079. |
| Temper | O, H12, H14, H16, H18, H19, H22, H24, H26, T4, T5, T6 |
| Form | Coil / Sheet / Strip |
| Surface Finish | Mill Finish BrightFinish Embossed Brushed Anodized Painted |
| Protective Film | PE / PVC (Optional) |
| Inner Diameter | 508 mm / 610 mm |
| Standard | ASTM B209, EN 485, JIS, GB |
Premium Customized Services
☑ Professional Manufacturer
Equipped with multiple hot-rolled and cold-rolled aluminum coil and sheet production lines, backed by extensive manufacturing experience and a stable supply capacity to meet the high-quality aluminum material demands of various industries.
☑ Diverse Product Range
A wide variety of product forms, including aluminum coils, sheets, and strips in multiple specifications, suitable for processing, secondary fabrication, and end-use manufacturing applications.
☑ Customized Services
Personalized customization is supported, offering tailored solutions in dimensions, colors, and surface treatments to fully meet diverse and differentiated application requirements.
Product Form
Coil
Width: 600-2600mm
Strip
Width: 10-600mm
Sheet / Plate
Length: 2000-6000mm
Aluminum Coil Grade
Based on different alloy compositions and properties, aluminum coils can be divided into several series, each differing in physical properties and application areas.
1xxx Series
(Pure Aluminum)
- High aluminum purity (≥99.0%).
- Excellent electrical and thermal conductivity.
- Outstanding corrosion resistance.
- Soft temper with excellent flexibility and ductility.
- Easy to form, bend, and draw.
- Good surface finish and excellent reflectivity.
2xxx Series
(Al–Cu Alloy)
- High strength due to copper alloying.
- Good fatigue resistance and mechanical performance.
- Excellent performance at elevated temperatures.
- Good machinability and formability under controlled conditions.
- Moderate corrosion resistance (surface treatment often required).
3xxx Series
(Al–Mn Alloy )
- Good corrosion resistance in atmospheric and marine environments.
- Moderate strength with excellent formability and ductility.
- Easy to roll, bend, and draw into various shapes.
- Good weldability and solderability.
- Stable performance for long-term service.
5xxx Series
(Al–Mg Alloy)
- Excellent corrosion resistance, especially in marine and humid environments.
- High strength while maintaining good ductility and formability.
- Good weldability and workability for various applications.
- Resistant to stress corrosion cracking.
- Long-term dimensional stability and reliable performance.
6xxx Series
(Al–Mg–Si Alloy)
- Good corrosion resistance with excellent mechanical properties.
- Medium to high strength with good formability and machinability.
- Excellent surface finish for architectural and industrial applications.
- Stable performance for long-term service.
- Can be anodized or coated for enhanced durability and aesthetics.
7xxx Series
(Al–Zn–Mg Alloy)
- Very high strength with excellent mechanical performance.
- Good fatigue resistance for demanding applications.
- Moderate corrosion resistance (surface treatment often recommended).
- Good machinability and formability under controlled conditions.
- Ideal for applications requiring lightweight yet strong material.
8xxx Series
(Al–Fe/Si Alloy)
- Excellent corrosion resistance in general environments.
- Good dimensional stability and rigidity.
- Moderate strength with good formability.
- Resistant to heat and light, ideal for packaging and industrial applications.
- Cost-effective solution for large-scale production.
Surface Treatment Processes for Aluminum Coil
Aluminum coil surface treatments are mainly used to improve corrosion resistance, decorative appearance, adhesion performance, and functional properties.
Polishing / Mirror
Mechanical or chemical polishing is used to make the aluminum surface smoother and brighter.
Brushed
Mechanical brushing creates uniform linear textures on the aluminum surface.
Anodizing
An electrochemical process that forms a dense oxide layer on the aluminum surface.
Coating / Painting
An organic or inorganic coating is applied to the aluminum surface, commonly PE, PVDF, or epoxy coatings.
Embossed
Patterns are pressed onto the aluminum surface using embossing rollers.
Diamond
The surface features aluminum sheets embossed with a diamond pattern using a roller. This process creates a raised texture that enhances both functionality and aesthetics.
Application Industries of Aluminum Coil
Aluminum coils are widely used in building decoration, transportation, electronics, packaging materials and other fields, playing an important role in the national economy.
Category
1050 aluminum coil belongs to the 1000 series of high-purity aluminum, with an aluminum content of no less than 99.5% …
1060 aluminum coil belongs to the 1000 series of commercially pure aluminum, with an aluminum content of no less than …
1070 aluminum coil belongs to the 1000 series of high-purity aluminum, with an aluminum content of no less than 99.7% …
1100 aluminum coil belongs to the 1000 series of high-purity aluminum, with an aluminum content of no less than 99.0% …
1145 aluminum coil belongs to the 1000 series of commercially pure aluminum, with an aluminum content of no less than …
1200 aluminum coil is a high-purity aluminum in the 1000 series, with an aluminum content of 99.0% or higher. It …
1230 aluminum coil is a 1000-series high-purity aluminum alloy. It offers excellent corrosion resistance, high ductility, and good thermal and …
1235 aluminum coil belongs to the 1000 series of high-purity aluminum, with an aluminum content of no less than 99.35% …
1350 aluminum coil is a high-purity aluminum in the 1000 series, with an aluminum content of 99.5% or higher. It …
2024 aluminum coil is a heat-treatable aluminum–copper–magnesium alloy in the 2xxx series. It is well known for its high strength, …
2A11 aluminum coil is a heat-treatable aluminum–copper–magnesium alloy in the 2xxx series. It offers high strength, good fatigue resistance, and …
2A12 aluminum coil is a heat-treatable aluminum–copper–magnesium alloy in the 2xxx series. It is widely used in aerospace and high-strength …
2A14 aluminum coil is a heat-treatable aluminum–copper–magnesium–silicon alloy in the 2xxx series. It is known for its very high strength, …
2A17 aluminum coil is a heat-treatable aluminum–copper–magnesium alloy in the 2xxx series. It is characterized by high strength, good fatigue …
3003 aluminum coil belongs to the 3000 series aluminum alloy, with manganese (Mn) content ≈ 1.0% and aluminum content ≥ …
3004 aluminum coil belongs to the 3000 series aluminum alloy, with manganese (Mn) content of approximately 1.2 – 1.5% and …
3005 aluminum coil belongs to the 3000 series aluminum alloy, with manganese (Mn) content of approximately 1.0 – 1.5% and …
3104 aluminum coil belongs to the 3000 series aluminum-manganese-magnesium alloys, featuring a higher magnesium content compared with 3003 and 3004 …
3105 aluminum coil belongs to the 3000 series aluminum-manganese alloys, with manganese as the primary alloying element. Compared with 3003 …
3A21 aluminum coil is an aluminum–manganese alloy in the 3000 series. It is known for its good corrosion resistance, excellent …
3A22 aluminum coil is an aluminum–manganese alloy in the 3000 series. It offers good corrosion resistance, moderate strength, and excellent …
5005 aluminum coil belongs to the 5000 series aluminum-magnesium alloy, with magnesium (Mg) content of approximately 0.8 – 1.2% and …
5052 aluminum coil belongs to the 5000 series aluminum-magnesium alloy, with magnesium (Mg) content of approximately 2.2 – 2.8% and …
5056 aluminum coil belongs to the 5000 series aluminum-magnesium alloys, featuring a higher magnesium content than 5052. It offers higher …
5059 aluminum coil is a non-heat-treatable aluminum-magnesium alloy in the 5xxx series. It is designed for superior corrosion resistance, high …
5083 aluminum coil is a non-heat-treatable aluminum-magnesium alloy in the 5xxx series. It is renowned for its exceptional corrosion resistance, …
5086 aluminum coilt is a non-heat-treatable aluminum-magnesium alloy in the 5xxx series, well-known for its exceptional corrosion resistance, high strength, …
5182 aluminum coil is a non-heat-treatable aluminum-magnesium alloy in the 5xxx series. It is recognized for its excellent corrosion resistance, …
5454 aluminum coil is a non-heat-treatable aluminum-magnesium alloy in the 5xxx series. It is known for its excellent corrosion resistance, …
5754 aluminum coil is a non-heat-treatable aluminum-magnesium alloy in the 5xxx series. It is widely used for excellent corrosion resistance, …
5A02 aluminum coil is a non-heat-treatable aluminum-magnesium alloy in the 5xxx series, characterized by excellent corrosion resistance, lightweight performance, and …
5A03 aluminum coil is a non-heat-treatable aluminum-magnesium alloy in the 5xxx series. It is highly valued for its excellent corrosion …
5A05 aluminum coil is a non-heat-treatable aluminum-magnesium alloy in the 5xxx series. It is recognized for its excellent corrosion resistance, …
5A06 aluminum coil is a non-heat-treatable aluminum-magnesium alloy in the 5xxx series. It is known for its high corrosion resistance, …
5M52 aluminum coil is an aluminum‑magnesium alloy in the 5xxx series widely used for general industrial, architectural, and decorative applications …
6005 aluminum coil is a heat-treatable aluminum-magnesium-silicon alloy in the 6xxx series. It is valued for its good mechanical strength, …
6016 aluminum coil is a heat-treatable aluminum alloy in the Al-Mg-Si (6xxx) series, widely used in the automotive industry. It …
6022 aluminum coil is a heat-treatable aluminum alloy in the Al-Mg-Si (6xxx) series, widely used for automotive body panels. It …
6060 aluminum coil is a heat-treatable aluminum alloy belonging to the Al-Mg-Si (6xxx) series. It is known for its excellent …
6061 aluminum coil belongs to the 6000 series aluminum-magnesium-silicon alloy, with magnesium (Mg) content of approximately 0.8 – 1.2%, silicon …
6062 aluminum coil is a heat-treatable aluminum alloy belonging to the Al-Mg-Si (6xxx) series. It is known for its good …
6063 aluminum coil is a heat-treatable aluminum alloy from the Al-Mg-Si (6xxx) series, commonly referred to as an architectural alloy …
6082 aluminum coil belongs to the 6000 series aluminum-magnesium-silicon alloy, with magnesium (Mg) content of approximately 0.6 – 1.2%, silicon …
6101 aluminum coil is a heat-treatable aluminum alloy belonging to the Al-Mg-Si (6xxx) series, specially designed for electrical applications. It …
7005 aluminum coil is a high-strength Al-Zn-Mg series aluminum alloy, belonging to the 7000 series. Unlike many other 7000 series …
7050 aluminum coil belongs to the 7000 series aluminum-zinc-magnesium-copper alloys. It is a high-strength, heat-treatable aluminum alloy developed specifically for …
7072 aluminum coil is an aluminum–zinc–magnesium alloy in the 7000 series, known for its excellent corrosion resistance, moderate strength, and …
7075 aluminum coil is a high-strength, heat-treatable aluminum alloy from the Al-Zn-Mg-Cu (7xxx) series. It is one of the strongest …
7178 aluminum coil is a high-strength aluminum–zinc–magnesium–copper alloy in the 7000 series. It offers ultra-high strength, good fatigue resistance, and …
7A04 aluminum coil is a high-strength heat-treatable aluminum alloy belonging to the Al-Zn-Mg (7xxx) series. It is characterized by high …
7A09 aluminum coil is a high-strength heat-treatable aluminum alloy belonging to the Al-Zn-Mg-Cu (7xxx) series. It is known for its …
8006 aluminum coil is a non-heat-treatable aluminum alloy from the 8xxx series, primarily alloyed with iron (Fe) and silicon (Si) …
8011 aluminum coil belongs to the 8000 series aluminum alloy and is primarily used as the base material for food …
8021 aluminum coil is a non-heat-treatable aluminum alloy belonging to the 8xxx series, alloyed mainly with iron (Fe) and silicon …
8079 aluminum coil belongs to the 8000 series high-purity aluminum, with aluminum content ≥ 99.7%. This alloy features extremely high …
