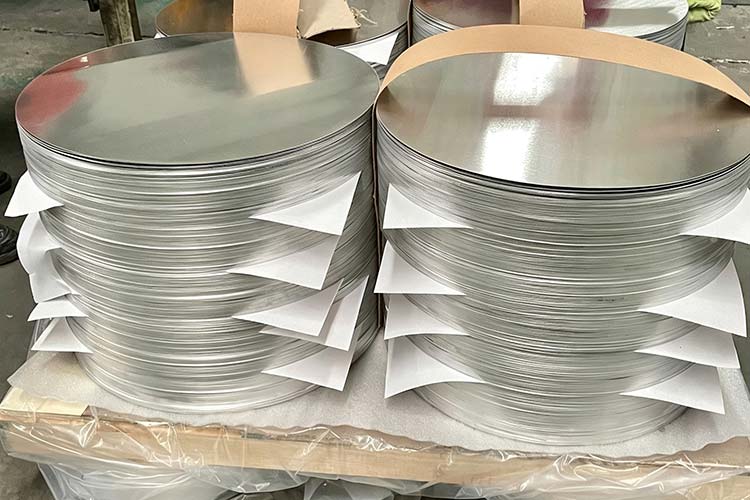

The 1070 aluminum disc is a high-purity aluminum product manufactured from 1070 aluminum sheet through processes such as stamping, spinning, and deep drawing. Belonging to the 1xxx series of pure aluminum alloys, it contains a minimum of 99.7% aluminum. Compared to 1050 and 1060 aluminum discs, the 1070 variant offers higher purity and superior electrical conductivity. Thanks to its exceptional purity, ductility, corrosion resistance, electrical and thermal conductivity, and formability, the 1070 aluminum disc is widely used in applications demanding the highest standards of purity, conductivity, and surface quality.
Description
Specifications
Features
- Excellent Deep-Drawing Properties
The grain size of 1060 aluminum discs is strictly controlled. During subsequent spinning or deep-drawing processes, issues such as “earring” (low earring rate) or fracturing are unlikely to occur, making them ideal for manufacturing deep-drawn vessels.
- Excellent Corrosion Resistance and Thermal Conductivity
Pure aluminum offers outstanding thermal conductivity. Additionally, a dense protective oxide film readily forms on its surface when exposed to the atmosphere, providing strong rust resistance.
- High Weldability and Plasticity
The material is easily welded using gas welding, atomic hydrogen welding, and contact welding methods, and it readily withstands various pressure-forming processes.
Specifications
| Item | Specification |
|---|---|
| Alloy | 1070 Aluminum |
| Chemical Composition (%) | Al ≥99.70, Si ≤0.20, Fe ≤0.25, Cu ≤0.04, Mn ≤0.03, Mg ≤0.03, Zn ≤0.04, Ti ≤0.03, Other Elements (Each) ≤0.03, Other Elements (Total) ≤0.10 |
| Temper | O, H12, H14, H16, H18 |
| Thickness | 0.3 mm – 10 mm |
| Diameter | 50 mm – 1500 mm (Customized available) |
| Surface Finish | Mill Finish / Bright Finish / Mirror Finish / Anodized Finish |
| Edge | Mill Edge / Trim Edge / Smooth Punched Edge |
| Processing Method | Punching / Stamping / Spinning / Deep Drawing |
| Standard | ASTM B209 / EN AW 1070 / JIS H4000 |
Mechanical Properties (Typical)
| Property | 1070-O |
|---|---|
| Tensile Strength | 60–95 MPa |
| Yield Strength | ≥15 MPa |
| Elongation | ≥30% |
| Hardness (Approx.) | 15–25 HB |
| Density | 2.71 g/cm³ |
| Electrical Conductivity | Approx. 62–63% IACS |
| Melting Point | Approx. 660℃ |
Typical Applications
- Food Packaging & Containers
Beverage bottle caps, cosmetic aluminum caps, beer bottle caps, pharmaceutical caps, aluminum containers, and other food-contact packaging products
- Lighting Industry
LED reflectors, lamp cups, lighting housings
- Electrical Industry
Conductive components, electrical equipment parts, transformer components
- Electronics
Heat sinks, battery cases, electronic shielding parts
- Chemical Industry
Chemical containers and corrosion-resistant components
Industrial Manufacturing Deep drawing parts, spinning parts, precision stamping components
- Decoration
Reflective panels, nameplates, decorative parts
