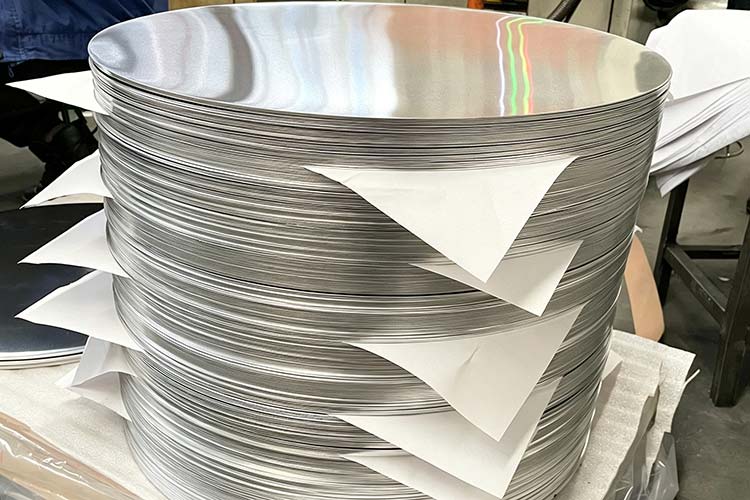

Description
1050 aluminum circles are circular aluminum products manufactured from 1050 pure aluminum sheet or strip via stamping, spinning, or deep drawing; they belong to the 1xxx series of pure aluminum. With an aluminum content of ≥99.5%, they offer excellent ductility, corrosion resistance, and thermal conductivity, as well as good deep-drawing properties, making them widely used in the manufacture of cookware, lighting fixtures, electronics, packaging, and industrial components.
Features
- Exceptional Plasticity
Features excellent elongation; suitable for deep drawing, spinning, and stretching processes without cracking during stamping, making it a preferred base material for cookware and lamp shades.
- High Corrosion Resistance
Pure aluminum readily forms a dense surface oxide film, offering resistance to atmospheric conditions and weak acids; suitable for use as linings in chemical containers.
- Excellent Thermal and Electrical Conductivity
Thermal conductivity of 231 W/(m·K) and electrical conductivity of approximately 59% IACS; commonly used for heat dissipation and electrical conduction components.
- Bright Surface Finish
Suitable for anodizing, polishing, and spraying, offering excellent decorative and reflective qualities.
Specifications
| Item | Specification |
|---|---|
| Alloy | 1050 Aluminum |
| Chemical Composition (%) | Al ≥99.50, Si ≤0.25, Fe ≤0.40, Cu ≤0.05, Mn ≤0.05, Mg ≤0.05, Zn ≤0.05, Ti ≤0.03, Other Elements (Each) ≤0.03, Other Elements (Total) ≤0.10 |
| Temper | O, H12, H14, H16, H18 |
| Thickness | 0.3 mm – 10 mm |
| Diameter | 50 mm – 1500 mm (Customized available) |
| Surface Finish | Mill Finish / Bright Finish / Mirror Finish / Anodized Finish |
| Edge | Mill Edge / Trim Edge / Smooth Punched Edge |
| Processing Method | Punching / Stamping / Spinning / Deep Drawing |
| Standard | ASTM B209 / EN AW 1050 / JIS H4000 |
Mechanical Properties (Typical)
| Property | 1050-O |
|---|---|
| Tensile Strength | 60–100 MPa |
| Yield Strength | ≥20 MPa |
| Elongation | ≥25% |
| Hardness (Approx.) | 20–30 HB |
| Density | 2.71 g/cm³ |
| Electrical Conductivity | Approx. 61% IACS |
| Melting Point | Approx. 660℃ |
Main Applications

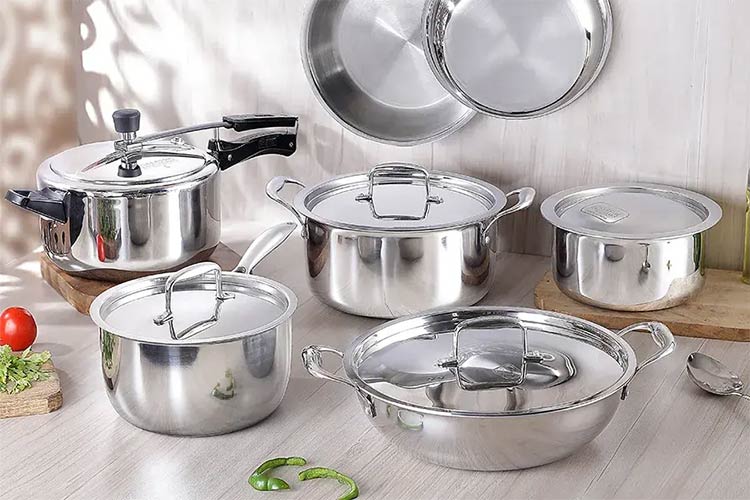

Kitchenware & Household Goods
- Cookware: Aluminum pots, soup pots, saucepans, frying pans, pressure cooker bases, baking trays, pizza pans.
- Accessories: Pot lids, kettle liners, induction hob heat-conducting bases, baking molds.

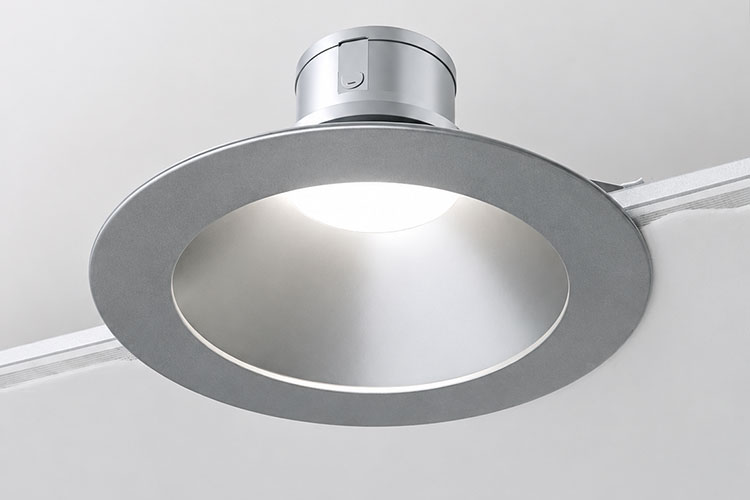

Lighting & Reflectors
Reflectors for various lighting fixtures: Downlights, streetlights, industrial high-bay lights, LED reflector cups; leveraging advantages such as high reflectivity and ease of spin-forming.
Signage, Decoration & Construction Materials

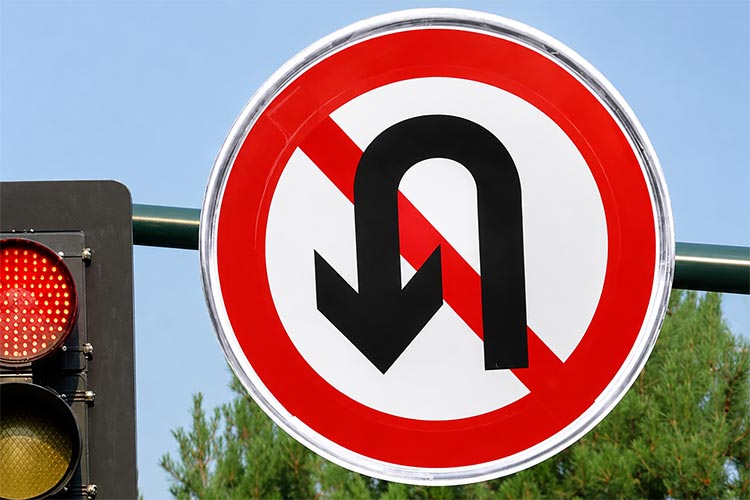

- Traffic signs, nameplates, equipment identification tags.
- Decorative ceiling discs, curtain wall decorative elements, spun bases for handicrafts.

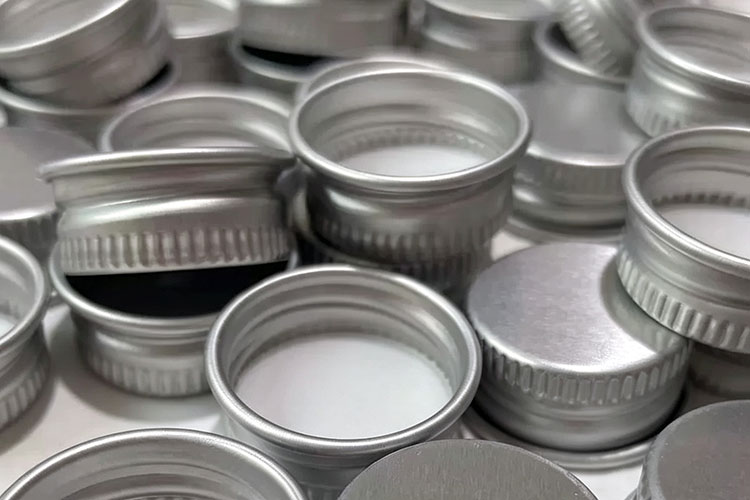

Bottle Caps
Beverage bottle caps, cosmetic aluminum caps, beer bottle caps, pharmaceutical bottle caps, and other aluminum packaging containers.
