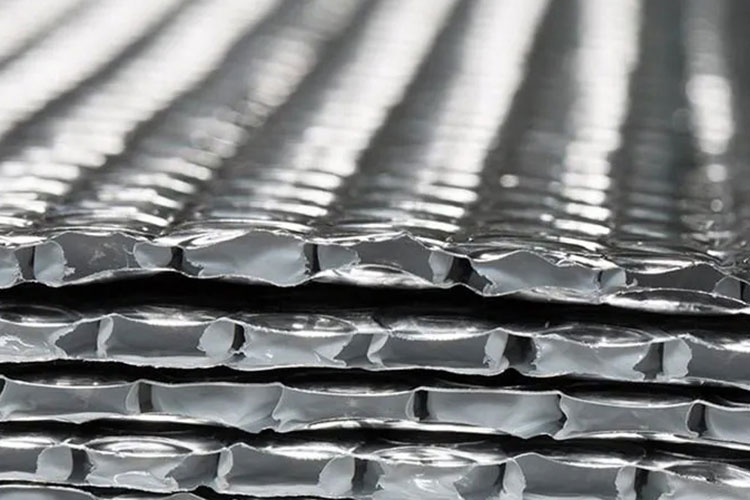

Bubble foil is a lightweight and highly efficient thermal insulation material, composed of a composite structure featuring an aluminum foil layer bonded to a polyethylene (PE) bubble film. Its internal enclosed air bubbles significantly reduce heat conduction, while the reflective surface of the aluminum foil reflects up to 97% of radiant heat, thereby delivering exceptional thermal insulation performance.
- Reflective Aluminum Surface
- Air Bubble Core
- Lightweight Structure
- Flexible
- Long Service Life
Description

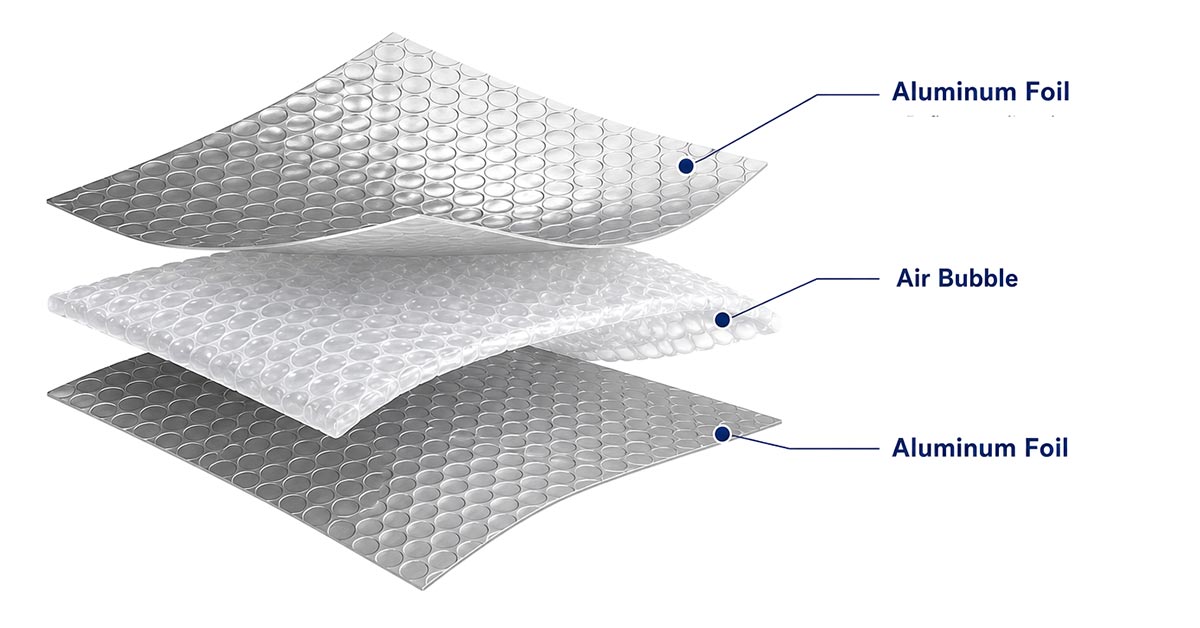

Structural Diagram
Specifications
| Item | Specification |
|---|---|
| Main Material | Aluminum Foil + (Single / Double) PE Bubble + Aluminum Foil |
| Bubble Size | Ø10mm × H2.5mm / Ø10mm × H4mm / Ø10mm × H6mm / Ø20mm × H7mm / Ø25mm × H8mm / Ø25mm × H10mm |
| Coating Color | Blue, Green, Pink, Orange, or Customized |
| Aluminum Foil Thickness | 7 Microns |
| Total Thickness | 2mm – 10mm |
| Reflectivity | 96% – 97% |
| Standard Roll Size | 1.2m × 30m; 1.2m × 40m; 1.35m × 22.25m |
Typical Applications
As a highly cost-effective insulation solution, bubble foil effectively blocks moisture, air infiltration, and vapor transmission. Consequently, this material is widely utilized across a diverse range of insulation applications—including construction, warehousing, HVAC systems, roofing, wall structures, and packaging.
Building Insulation

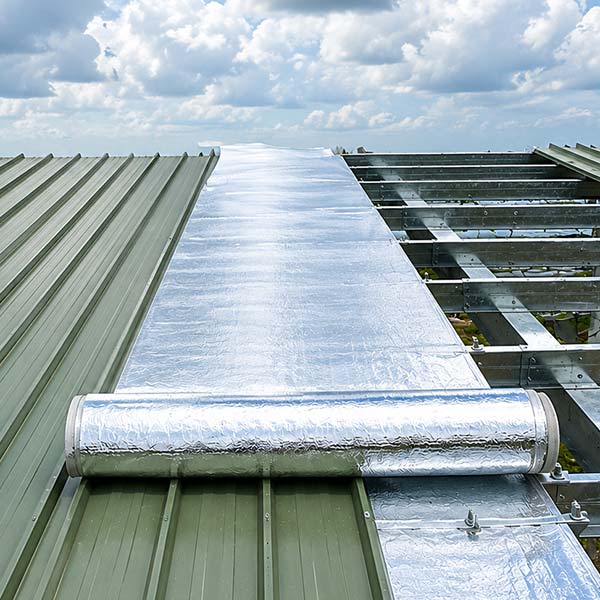

- Roof insulation
- Wall insulation
- Attic insulation
- Metal building insulation
HVAC Systems
- Air duct insulation
- Ventilation systems
- Air-conditioning insulation
Packaging & Transportation

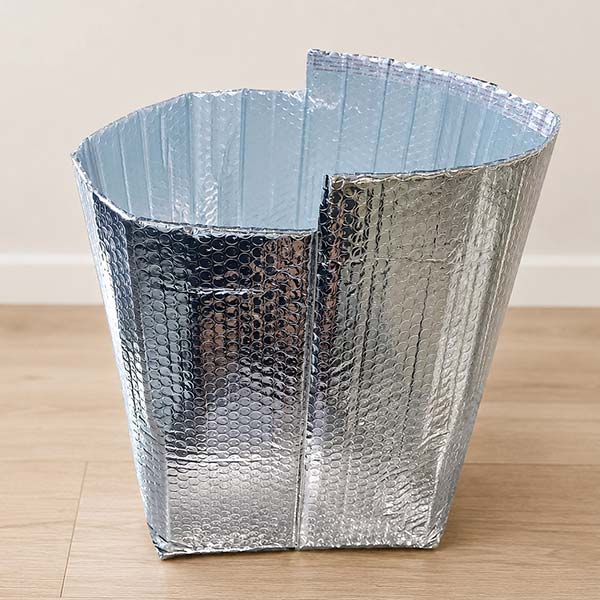

- Temperature-sensitive packaging
- Cold chain transportation
- Container insulation
Agricultural Applications
- Greenhouses
- Poultry houses
- Livestock buildings
