Aluminum foil tape is a high-performance adhesive tape composed of an aluminum foil substrate laminated with a pressure-sensitive adhesive (typically an acrylic-based or rubber-based adhesive). It possesses exceptional heat-reflecting, moisture-resistant, and vapor-barrier properties, enabling it to withstand high-temperature and high-humidity environments while maintaining strong and reliable adhesion.
Description
Yutwin New Materials provides high-quality aluminum foil tape rolls to the global market. These aluminum foil tapes can all be fully customized at Yutwin New Materials to meet specific application requirements. We provide flexible options in thickness, width, length, adhesive type.

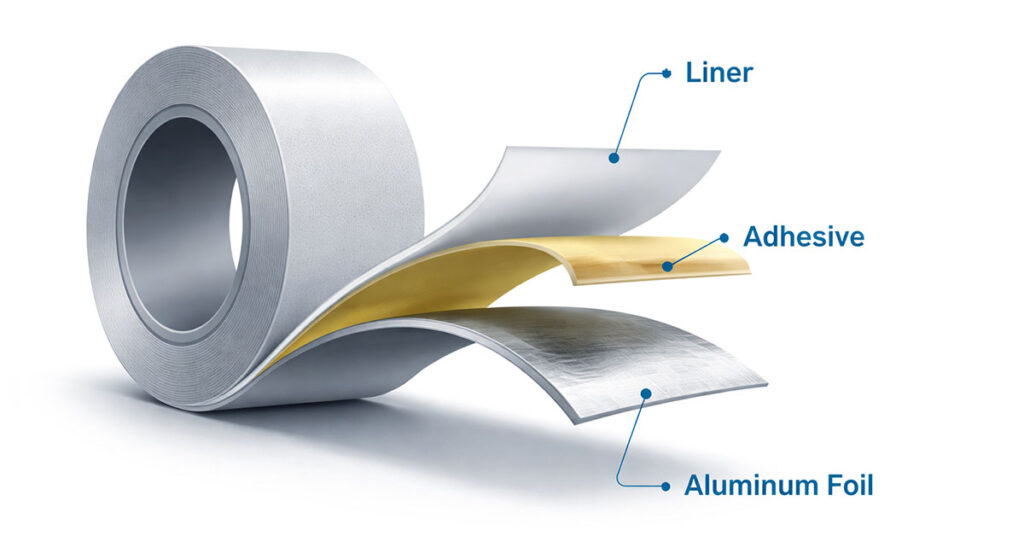

Schematic Diagram
Product Features
- Excellent Heat Resistance
Withstands high and low temperatures, making it ideal for HVAC duct sealing and thermal insulation systems.
- Strong Adhesion
High-tack adhesive ensures reliable bonding on metal, plastic, and other surfaces.
- Moisture & Vapor Barrier
Effectively blocks moisture, air, and vapor, improving system efficiency and preventing leakage.
- Corrosion Resistance
Aluminum backing provides superior resistance to oxidation and environmental exposure.
- Flame Retardant
Suitable for applications requiring fire resistance and safety compliance.
- UV Resistance
Maintains performance under prolonged outdoor exposure.
Common Applications
- Base material for aluminum foil adhesive tapes.

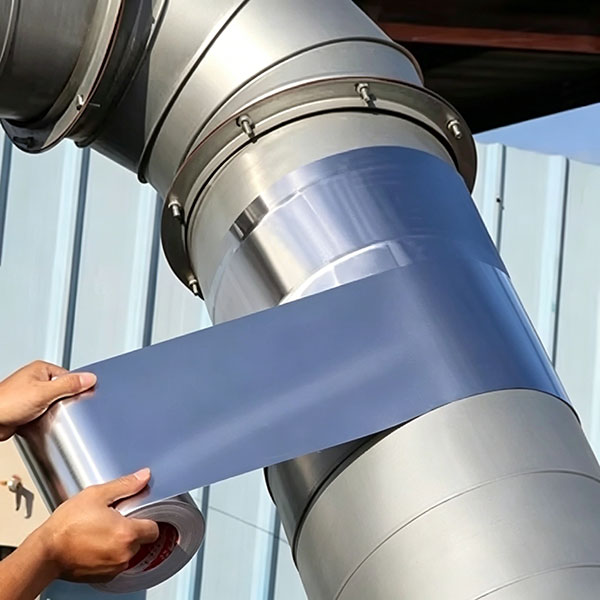

- HVAC duct sealing tapes.
- Thermal insulation and vapor barrier tapes.
- Refrigeration and air-conditioning systems.
- EMI/RFI shielding tapes in electronics.
- Automotive heat insulation tapes.
Specifications
| Item | Specification Range | Description |
|---|---|---|
| Aluminum Foil Thickness | 20–100 μm | Common options: 30μm / 50μm / 70μm / 80μm / 100μm |
| Adhesive Layer Thickness | 15–50 μm | Adjusted according to adhesion and application requirements |
| Total Thickness | 40–150 μm | Combined thickness of foil and adhesive layer |
| Width | 10–1000 mm | Common: 25mm / 50mm / 75mm / 100mm; customizable slitting available |
| Length (Small Roll) | 10–100 m | Standard retail or general engineering use |
| Length (Jumbo Roll) | 300–1000 m | Industrial production rolls |
| Aluminum Foil Type | 8011-O / 8011-H18 / 1235-O / 1100-O | Common high-ductility aluminum alloys |
| Adhesive Type | Acrylic adhesive / Rubber adhesive / Solvent-based acrylic adhesive | Selected based on temperature resistance and performance needs |
| Temperature Resistance | -20°C to 150°C | Acrylic adhesive generally offers higher heat resistance |
| Structural Options | Without liner / With release liner / Fiberglass reinforced / Flame retardant type | Customizable according to application |

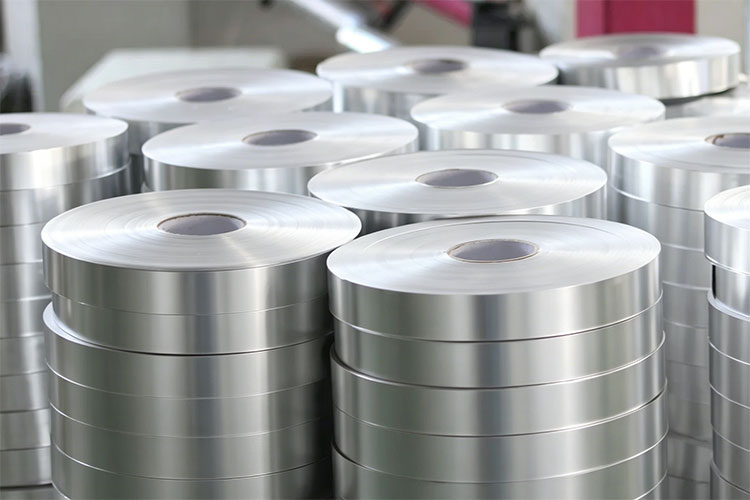

Aluminum Foil for Adhesive Tape
We also supply aluminum foil for adhesive tape production. These foils are specially engineered with optimized manufacturing processes to deliver excellent mechanical strength, superior surface quality, and strong compatibility with various pressure-sensitive adhesives. This ensures reliable performance in sealing, insulation, and protective applications.
