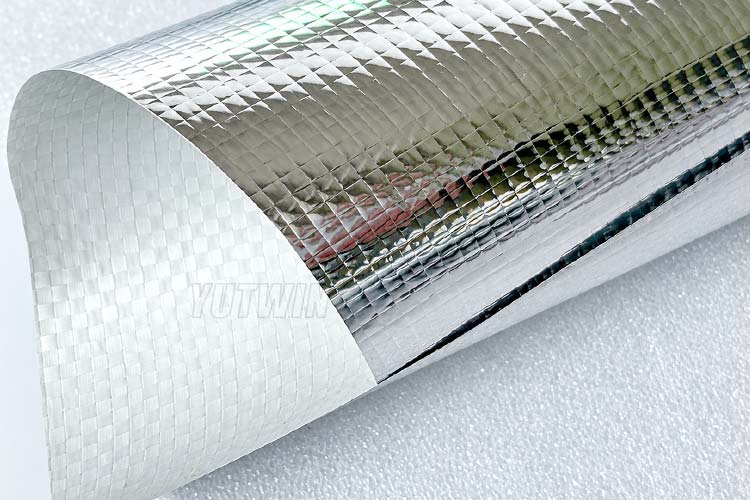

Aluminum foil laminated woven fabric is a composite material that combines the barrier properties of aluminum foil with the structural strength of plastic woven fabric. It is manufactured by laminating an aluminum foil layer to a plastic woven fabric substrate through a specialized composite process. The aluminum foil layer provides excellent reflectivity, heat insulation, moisture resistance, and barrier properties, while the high-strength plastic woven fabric offers good tensile strength, tear resistance, and dimensional stability. By combining these two materials, aluminum foil woven fabric delivers a lightweight yet durable structure with enhanced overall mechanical performance.
Description
Customized Aluminum Foil Laminated Woven Fabric Solutions
Yutwin New Materials is a professional manufacturer and customization specialist of aluminum foil laminated woven fabric, providing flexible material solutions for different industrial and commercial applications. Our aluminum foil laminated woven fabrics combine the barrier and reflective properties of aluminum foil with the strength, flexibility, and dimensional stability of woven fabric. By adjusting the material structure, foil thickness, woven fabric type, coating, lamination method, and surface treatment, we can develop customized products to meet different performance and application requirements.
Product Features
- High R-Value and Excellent Thermal Insulation
Provides excellent thermal insulation performance and reflects up to 97% of radiant heat.
- Reduced Energy Consumption
Significantly reduces the need for mechanical cooling and heating systems in buildings, helping improve overall energy efficiency.
- Safe, Fast and Easy Installation
Easy and safe to install and use. Waterproof and does not support the growth of bacteria.
- Adhesive-Free Manufacturing Process
Manufactured without adhesives, helping avoid the use of ozone-depleting substances.
- Excellent Fire Safety Performance
Offers excellent fire safety characteristics, including flame-retardant and non-dripping performance.
- Effective Air and Vapor Barrier
The non-perforated material effectively blocks air infiltration and water vapor transmission, helping maintain a dry and stable building envelope.
Specifications
| Gram Weight | 40-300 g/m² |
| Width | 5cm – 2.9m |
| Thickness | 0.07-0.25mm |
| Length | 1-5000 m |
| Color | Color / Silver |
| Roll Core Size | 1.5 inch, 3 inch, 6 inch |

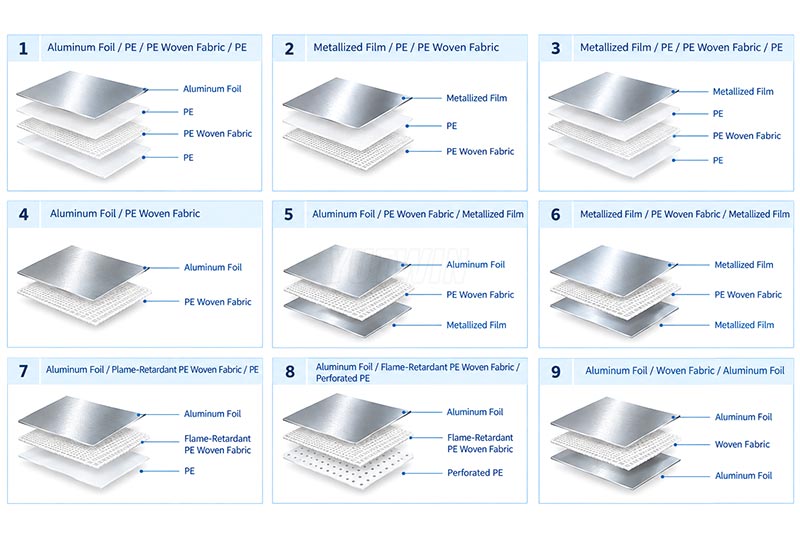

Product Structure
We manufacture a variety of composite structures tailored to specific application and performance requirements. Additionally, PE film layers, coatings, or other functional layers can be incorporated to further enhance water resistance, sealing properties, wear resistance, and processability.
| 1 | Aluminum Foil / PE / PE Woven Fabric / PE |
| 2 | Metallized Film / PE / PE Woven Fabric |
| 3 | Metallized Film / PE / PE Woven Fabric / PE |
| 4 | Aluminum Foil / PE Woven Fabric |
| 5 | Aluminum Foil / PE Woven Fabric / Metallized Film |
| 6 | Metallized Film / PE Woven Fabric / Metallized Film |
| 7 | Aluminum Foil / Flame-Retardant PE Woven Fabric / PE |
| 8 | Aluminum Foil / Flame-Retardant PE Woven Fabric / Perforated PE |
| 9 | Aluminum Foil / Woven Fabric / Aluminum Foil |
Product Applications
- Attic Insulation
Installed in attics to reflect radiant heat and prevent unwanted heat from entering the building, helping maintain a more comfortable indoor temperature.
- Basement Wall Insulation
Installed on basement walls to help prevent moisture penetration. The material does not promote the growth of bacteria or mold, making it suitable for moisture-prone environments.
- Roof Insulation
Used as a first line of defense against solar radiant heat entering through the roof. It helps reduce heat transfer into the attic and maintain a more stable attic temperature.
- Lamination with Other Insulation Materials
Used as a reinforcing and reflective layer in the production of other insulation materials, providing high strength and enhanced thermal insulation performance. Typical products include aluminum foil bubble insulation and aluminum foil foam insulation.
