Aluminum Sheets

Specifications

Item	Specification
Thickness	0.2 – 6.0 mm (Customizable: 0.1 – 12.0 mm)
Width	100 – 2600 mm; Slit strip width: 10 – 600 mm
Alloy / Grade	1000 Series: 1050, 1060, 1070, 1100, 1235, 1145, 1200, 1230, 1350. 2000 Series: 2024, 2A11, 2A12, 2A14, 2A17. 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, 3A22 5000 Series: 5005, 5052, 5056, 5083, 5086, 5182, 5454, 5754, 5059, 5A02, 5A03, 5A05, 5A06. 6000 Series: 6061, 6082, 6062, 6063, 6101, 6016, 6022, 6060, 6005. 7000 Series: 7005, 7A04, 7A09, 7050, 7075.
Temper	O, H12, H14, H16, H18, H19, H22, H24, H26, T4, T5, T6
Form	Coil / Sheet / Strip
Surface Finish	Mill Finish BrightFinish Embossed Brushed Anodized Painted
Protective Film	PE / PVC (Optional)
Inner Diameter	508 mm / 610 mm
Standard	ASTM B209, EN 485, JIS, GB

Yutewin New Materials

China’s Aluminum Material Expert

Yutewin New Materials specializes in the production of aluminum sheets and sheets in a wide range of alloys, grades, and specifications, offering stable quality, flexible customization, and reliable supply to meet the diverse needs of different industries.

Product Form

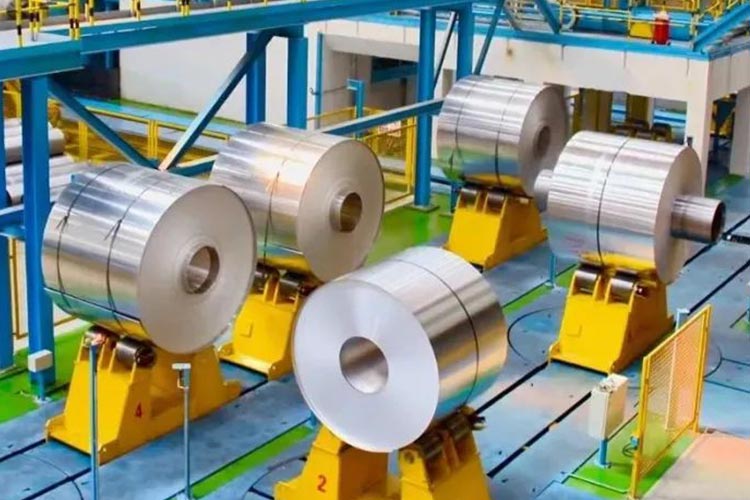

Coil

Width: 600-2600mm

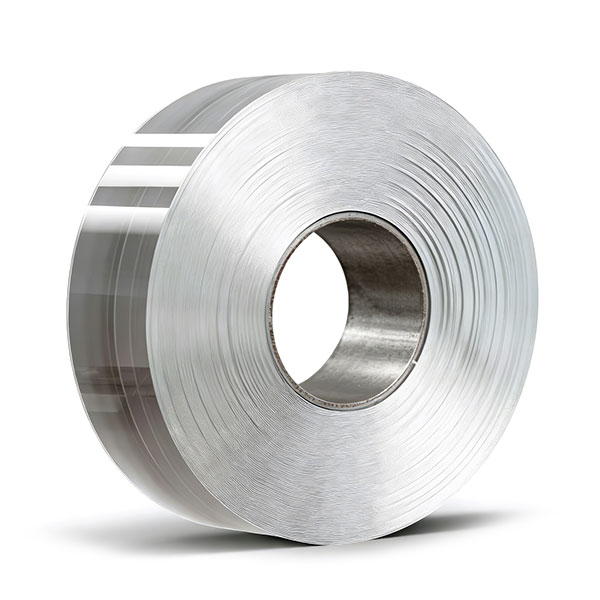

Strip

Width: 10-600mm

Sheet / Plate

Length: 2000-6000mm

Aluminum Grade

1000 Series

The 1000 series, also known as pure aluminum coils, has the highest aluminum content, over 99.00%. With minimal impurities, this series offers excellent corrosion resistance and thermal/electrical conductivity, though its mechanical strength is relatively low and cannot be enhanced by heat treatment.

2000 Series

Represented by 2A16 and 2A12, the 2000 series is also called high-strength aluminum alloy. Copper (3.5–5.5%) is the main alloying element, providing excellent mechanical strength and hardness, making it suitable for aerospace, transportation, and structural applications.

3000 Series

Represented by 3003 and 3A21, the 3000 series is also called rust-resistant aluminum coil. Manganese (1.0–1.5%) is the main alloying element, improving strength while maintaining good corrosion resistance.

5000 Series

The 5000 series is an aluminum-magnesium alloy, mainly alloyed with magnesium (3–5%). It has low density, high tensile strength, and good elongation, making it lighter than other series for the same area—ideal for weight-sensitive applications.

6000 Series

The 6000 series mainly contains magnesium and silicon, and is a cold-workable aluminum alloy. It offers good corrosion resistance and oxidation resistance, suitable for industrial and architectural applications requiring high durability.

7000 Series

The 7000 series is an aluminum-magnesium-zinc-copper alloy, classified as a heat-treatable, ultra-high-strength aluminum alloy. After processing, it exhibits high strength, wear resistance, low deformation, and minimal warping, making it essential for aerospace and high-end machinery.

Surface Treatment Processes for Aluminum Coil

Aluminum coil surface treatments are mainly used to improve corrosion resistance, decorative appearance, adhesion performance, and functional properties.

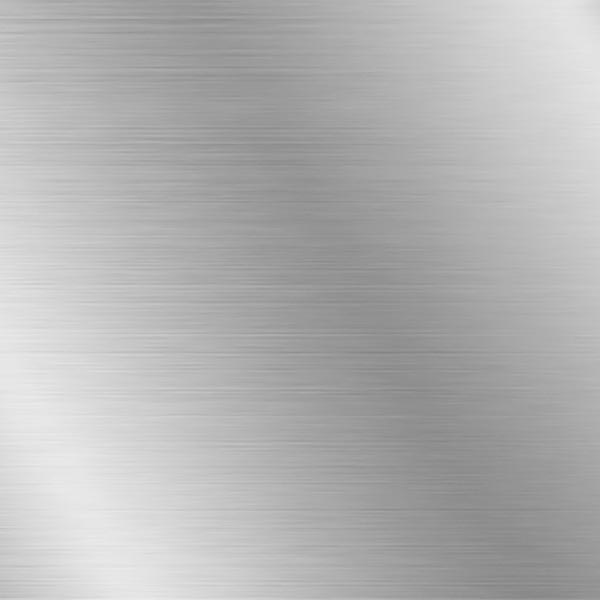

Polishing / Mirror

Mechanical or chemical polishing is used to make the aluminum surface smoother and brighter.

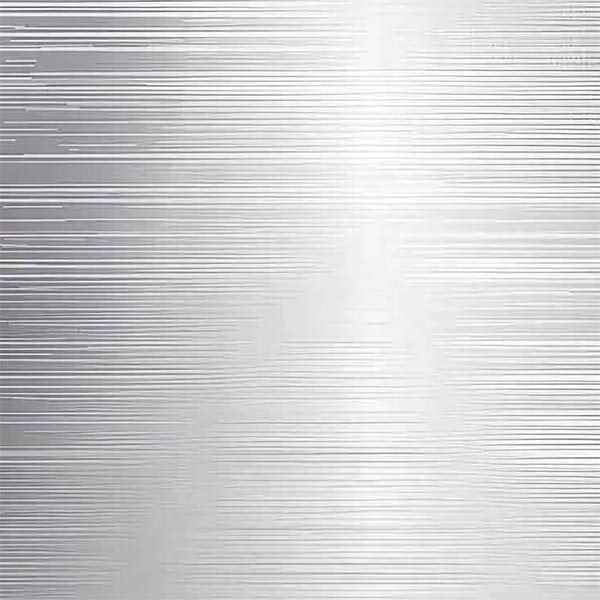

Brushed

Mechanical brushing creates uniform linear textures on the aluminum surface.

Anodizing

An electrochemical process that forms a dense oxide layer on the aluminum surface.

Coating / Painting

An organic or inorganic coating is applied to the aluminum surface, commonly PE, PVDF, or epoxy coatings.

Embossed

Patterns are pressed onto the aluminum surface using embossing rollers.

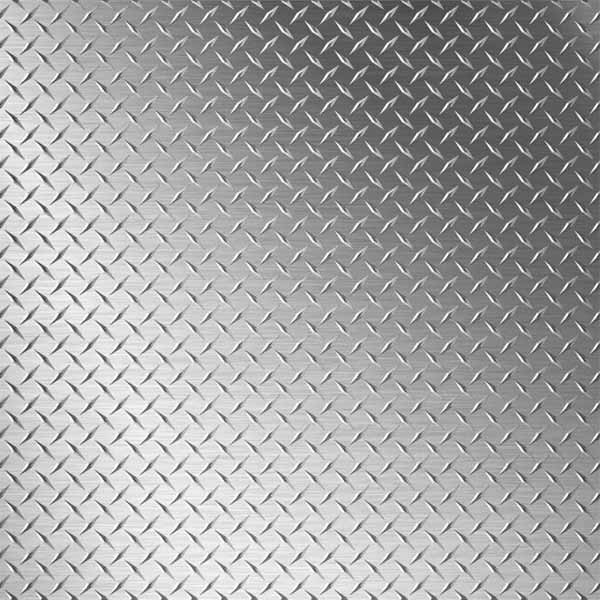

Diamond

The surface features aluminum sheets embossed with a diamond pattern using a roller. This process creates a raised texture that enhances both functionality and aesthetics.

Application Industries of Aluminum Coil

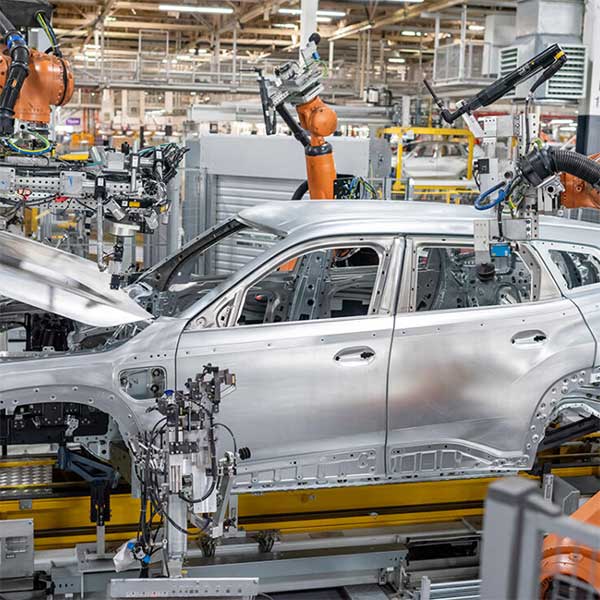

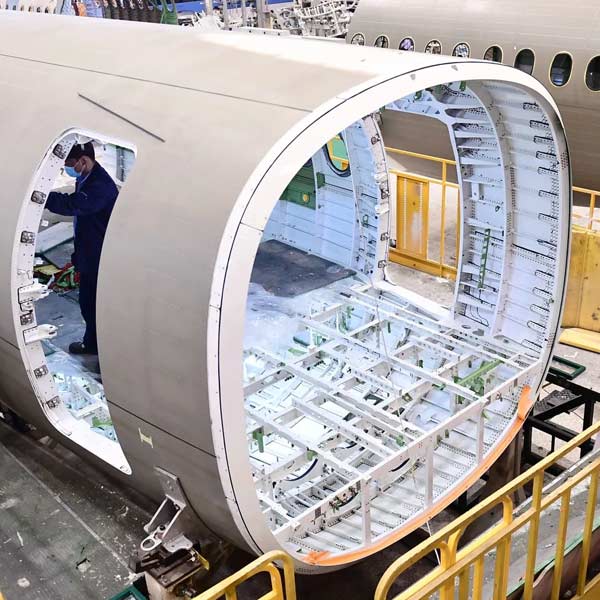

Aluminum sheets are widely used in building decoration, transportation, electronics, packaging materials and other fields, playing an important role in the national economy.
