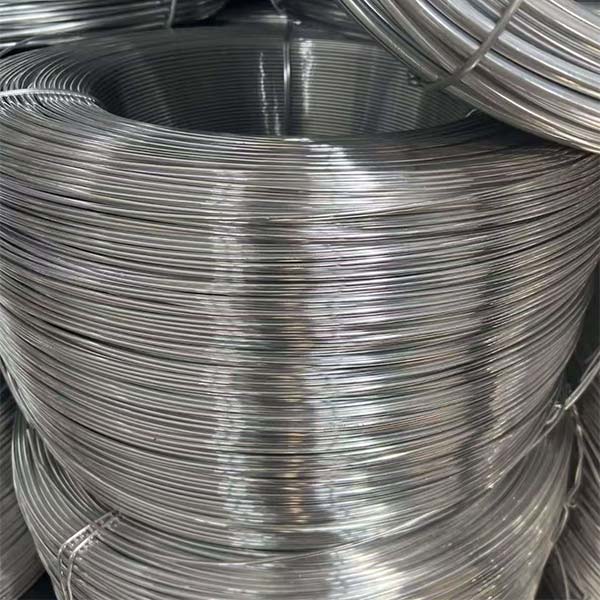

2014 aluminum wire is a high-strength aluminum–copper alloy wire, known for its excellent mechanical properties, wear resistance, and fatigue strength. It offers superior hardness, tensile strength, and dimensional stability, making it suitable for aerospace, automotive, and high-performance industrial applications. Compared with common 1000 and 3000 series aluminum wires, 2014 provides significantly higher strength while maintaining good corrosion resistance and electrical conductivity.
Description
Features
- High Strength & Hardness
Outstanding tensile and yield strength for demanding applications.
- Excellent Wear & Fatigue Resistance
Ideal for components under cyclic or high-load conditions.
Good Corrosion Resistance
Resists environmental corrosion in industrial and outdoor applications.
- Dimensional Stability
Maintains shape under thermal cycles and mechanical stress.
- Adequate Electrical & Thermal Conductivity
Supports electrical components and heat transfer applications.
- Formable & Machinable
Can be drawn, bent, and machined with proper techniques.
- Lightweight & Durable
Suitable for weight-sensitive, high-performance designs.
Specifications
| Item | Specification |
|---|---|
| Alloy | AA 2014 |
| Aluminum Content / Chemical Composition | Al: Balance, Cu: 3.9–5.0%, Si: 0.5–1.2%, Fe: ≤ 0.7%, Mn: 0.4–0.8%, Mg: 0.2–0.8%, Zn: ≤ 0.25%, Ti: ≤ 0.15%, Others: ≤ 0.15% |
| Temper | T6, T651 (customized) |
| Diameter Range | 0.5 – 12.0 mm |
| Form | Coil, spool, cut length |
| Surface Finish | Bright, smooth, oil-free |
| Electrical Conductivity | ~ 34–38% IACS |
| Density | 2.80 g/cm³ |
| Tensile Strength | T6: 415–480 MPa |
| Elongation | ≥ 10% (T6) |
Packaging
| Packaging Type | Weight | Dimensions |
|---|---|---|
| Plastic Reel | 7 kg/reel | Outer Diameter: 270 mmBore Diameter: 52 mmHeight: 105 mm |
| Drum (Small) | 25–100 kg/drum | Outer Diameter: 460 mm Height: 280 mm |
| Drum (Medium) | 25–100 kg/drum | Outer Diameter: 570 mm Height: 380 mm |
| Drum (Large) | 25–100 kg/drum | Outer Diameter: 570 mm Height: 740 mm |
| Bundle | 10–40 kg/bundle | Outer Diameter: 570 mm Inner Diameter: 340 mm Height: 170 mm |
Typical Applications
- Aerospace structural components.
- Automotive engine and transmission parts.
- High-performance machinery components.
- Electrical conductors in demanding environments.
- Aerospace and industrial fasteners.
