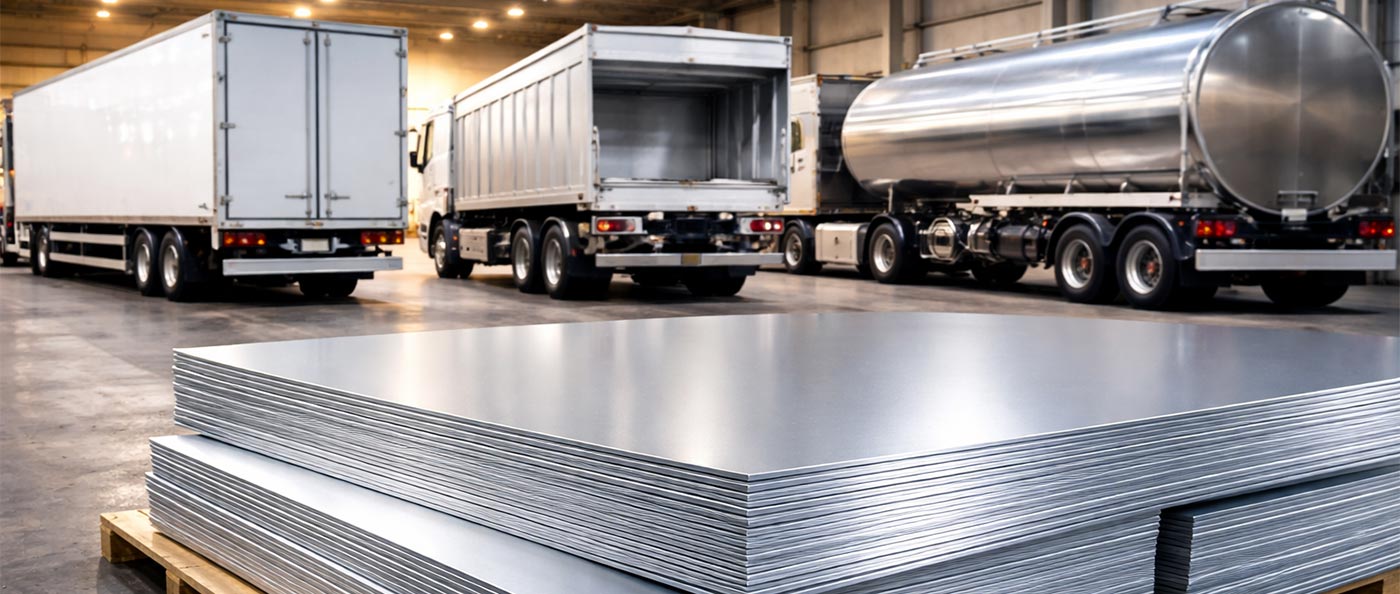

Aluminum sheets have become an indispensable material in modern truck body manufacturing, thanks to their light weight, corrosion resistance, and exceptional formability. Driven by rising demands for transportation efficiency and environmental sustainability, aluminum is increasingly replacing conventional steel and wood across a broad spectrum of commercial vehicle applications.
Applications of Aluminum Sheets in Different Truck Bodies
Aluminum sheets are widely used across various types of truck bodies, offering both structural and aesthetic advantages.
- Refrigerated Truck Bodies
- Dry Freight Truck Bodies
- Curtain Side Truck Bodies
- Dropside Truck Bodies
- Tipper Truck Bodies
- Wing Opening Truck Bodies
- Ambulance Truck Bodies
- Expedition Truck Bodies
- Tanker trucks, etc.
Specifications of Aluminum Sheets for Truck Bodies
| Item | Specification | Range / Options | Description |
|---|---|---|---|
| Thickness | Sheet Thickness | 0.5 – 6.0 mm (customizable) | Depends on application (inner panels to heavy-duty flooring) |
| Width | Sheet Width | 1000 – 2500 mm | Standard widths, can be customized for large panels |
| Length | Sheet Length | Coil or cut-to-length | Custom lengths available for seamless truck body panels |
| Surface Finish | Mill Finish | Natural aluminum surface | Standard industrial surface |
| Surface Finish | Embossed | Diamond / stucco / anti-slip patterns | Improved traction for flooring applications |
| Surface Finish | Coated | PE / PVDF coated | Enhanced weather resistance and appearance |
| Surface Finish | Anodized | Oxide layer treatment | Improved corrosion resistance and aesthetics |
| Alloy | Material Grade | 1050, 1060, 3003, 3004, 5052, 5083, 5754, 6061, 6063 | Selected based on strength and corrosion requirements |
| Temper | Mechanical Condition | O, H14, H24, H32, H111, H112, T4, T6 | Defines strength, hardness, and formability |
| Density | Material Density | ~2.7 g/cm³ | Lightweight compared to steel |
| Standard | Production Standard | ASTM, EN, GB | Meets international quality standards |
| Flatness | Tolerance | As per standard or custom | Ensures panel installation quality |
| Protective Film | Surface Protection | Optional PE film | Prevents scratches during transport and processing |
Components of Trucks Using Aluminum Sheets
| Category | Component | Description | Key Benefits |
|---|---|---|---|
| Exterior Components | Side Panels (Siding) | Outer wall panels of truck bodies | Lightweight, corrosion resistance, smooth appearance |
| Exterior Components | Roof Panels | Top covering of truck body | Weather resistance, reduced weight |
| Exterior Components | Front Bulkhead | Front wall separating cab and cargo area | Structural strength, impact resistance |
| Exterior Components | Rear Doors | Hinged or roll-up doors at rear | Durability, easy operation |
| Exterior Components | Door Frames | Supporting structure for doors | Corrosion resistance, long service life |
| Structural Components | Subframes | Supporting base structure of truck body | Weight reduction, improved load capacity |
| Structural Components | Reinforcements | Local strengthening parts | Increased rigidity and durability |
| Structural Components | Cross Members | Horizontal structural supports | Load distribution, structural stability |
| Structural Components | Wing Panels | Side opening panels (wing trucks) | Lightweight, high stiffness |
| Interior Components | Inner Lining Panels | Interior protective wall layers | Easy cleaning, hygienic surface |
| Interior Components | Flooring (Anti-slip Sheets) | Floor panels with embossed surface | Wear resistance, anti-slip safety |
| Interior Components | Partition Walls | Dividers in multi-temperature trucks | Thermal insulation, flexible zoning |
| Functional Parts | Toolboxes | Storage compartments | Corrosion resistance, lightweight |
| Functional Parts | Steps | Access steps for operators | Safety, durability |
| Functional Parts | Side Guards | Protective side barriers | Impact resistance, safety compliance |
| Functional Parts | Access Panels | Maintenance or inspection covers | Easy maintenance, lightweight |
Common Aluminum Alloys (Grades) for Truck Bodies
| Series | Alloy Grade | Main Composition | Key Features | Typical Applications |
|---|---|---|---|---|
| 1000 Series | 1050 / 1060 | Pure Aluminum (≥99%) | Excellent corrosion resistance, high ductility, low strength | Interior panels, decorative sheets |
| 3000 Series | 3003 / 3004 | Al-Mn | Good corrosion resistance, moderate strength, good formability | Side panels, roofing sheets |
| 5000 Series | 5052 | Al-Mg | Good strength, excellent corrosion resistance, weldable | Side walls, inner panels |
| 5000 Series | 5083 | Al-Mg | High strength, उत्कृष्ट corrosion resistance | Tankers, heavy-duty structures |
| 5000 Series | 5754 | Al-Mg | Medium-high strength, good fatigue resistance | Flooring, structural panels |
| 6000 Series | 6061 | Al-Mg-Si | High strength, heat-treatable, good machinability | Structural parts, frames |
| 6000 Series | 6063 | Al-Mg-Si | Good surface finish, moderate strength | Profiles, trims, extrusions |
Temper (Condition) of Aluminum Sheets
| Temper | Description | Mechanical Characteristics | Typical Applications |
|---|---|---|---|
| O | Annealed (soft) | Lowest strength, excellent formability | Deep drawing parts, complex shapes |
| H14 | Strain-hardened (half hard) | Moderate strength, good workability | General panels, siding |
| H24 | Strain-hardened + partially annealed | Balanced strength and ductility | Roofing, side panels |
| H32 | Strain-hardened and stabilized | Higher strength, good corrosion resistance | Tankers, marine environments |
| H111 | Slightly strain-hardened | Good formability with moderate strength | Structural panels |
| H112 | As-fabricated | Moderate strength, variable properties | Thick plates, structural uses |
| T4 | Solution heat-treated, naturally aged | Good formability, medium strength | Formed structural parts |
| T6 | Solution heat-treated, artificially aged | High strength, lower formability | Frames, load-bearing components |
