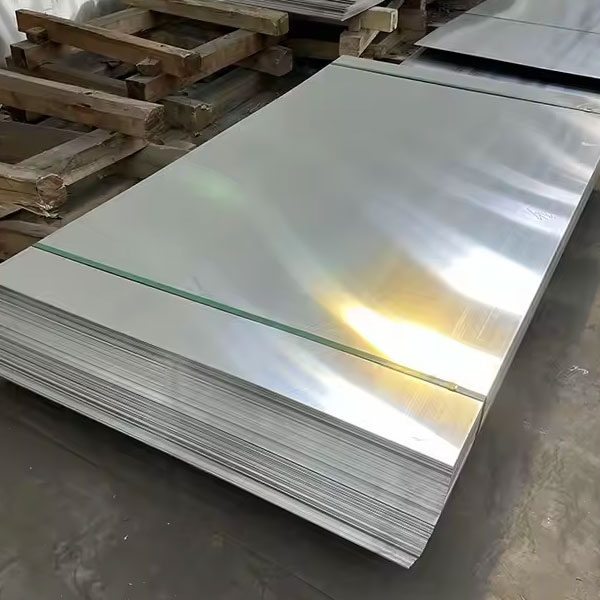

6101 aluminum sheet is a heat-treatable aluminum alloy belonging to the Al-Mg-Si (6xxx) series, specially designed for electrical applications. It combines good mechanical strength with excellent electrical conductivity, making it an ideal choice for power transmission and electrical equipment where both conductivity and structural performance are required.
Specifications
| Item | Specification |
|---|---|
| Alloy / Grade | 6101 |
| Chemical Composition (%) | Mg 0.35–0.80, Si 0.30–0.70, Fe ≤ 0.50, Cu ≤ 0.10, Mn ≤ 0.03, Zn ≤ 0.10, Ti ≤ 0.10, Al Balance |
| Series | 6000 Series (Al-Mg-Si) |
| Temper | O, T4, T6 |
| Thickness (mm) | 0.5 – 150 |
| Width (mm) | 100 – 2600 |
| Length (mm) | 1000 – 12000 (Customizable) |
| Surface Finish | Mill Finish, Anodized (Optional) |
| Standard | ASTM B209, EN 573, GB/T 3880 |
Description
Features
- Good mechanical strength
Suitable for structural and electrical applications requiring medium strength and good rigidity.
- Excellent corrosion resistance
Performs well in atmospheric, marine, and industrial environments; can be further enhanced by anodizing.
- Excellent formability and workability
Can be rolled, bent, stamped, and extruded, suitable for medium-to-thin gauge sheets and moderate forming processes.
- High electrical conductivity
Ideal for electrical cables, conductors, and bus bars where both conductivity and strength are required.
- Smooth and uniform surface finish
Suitable for anodizing, painting, coating, or film lamination for both decorative and functional purposes.
- Lightweight material
Low density helps reduce overall weight while maintaining structural performance.
Applications
- Electrical busbars and conductors.
- Power distribution equipment.
- Transformer and switchgear components.
- Electrical enclosures and panels.
- Industrial electrical systems.
