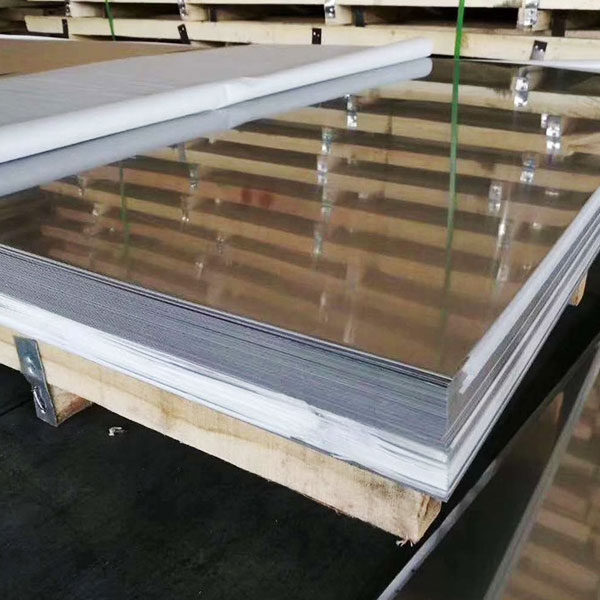

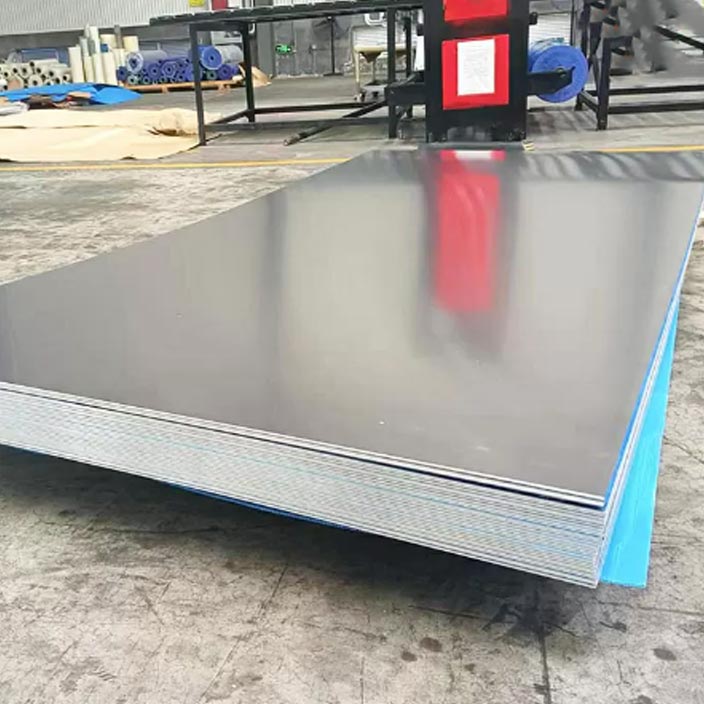

6022 aluminum sheet is a heat-treatable aluminum alloy in the Al-Mg-Si (6xxx) series, widely used for automotive body panels. It is known for its excellent formability in the T4 temper and its strong paint-bake hardening response, which allows the material to achieve higher strength after the painting process. This makes 6022 aluminum sheet especially suitable for lightweight automotive exterior and interior panels.
Specifications
| Item | Specification |
|---|---|
| Alloy / Grade | 6022 |
| Chemical Composition (%) | Mg 0.25–0.60, Si 0.8–1.3, Fe ≤ 0.50, Cu ≤ 0.20, Mn ≤ 0.20, Cr ≤ 0.10, Zn ≤ 0.25, Ti ≤ 0.15, Al Balance |
| Series | 6000 Series (Al-Mg-Si) |
| Temper | T4, T6 |
| Thickness (mm) | 0.5 – 6.0 |
| Width (mm) | 600 – 2000 |
| Length (mm) | 1000 – 6000 (Customizable) |
| Surface Finish | Mill Finish, Pre-treated, Oiled |
| Standard | ASTM B209, EN 573, EN 485 |
Description
Features
- Good mechanical strength
Suitable for structural, automotive, and transportation applications requiring moderate-to-high strength.
- Excellent corrosion resistance
Performs well in atmospheric, marine, and industrial environments; corrosion resistance can be further enhanced by anodizing or coating.
- Excellent formability and workability
Can be rolled, bent, stamped, and extruded, suitable for medium-to-thin gauge sheets and moderate forming processes.
- Smooth and uniform surface finish
Ideal for anodizing, painting, coating, or film lamination for both decorative and functional purposes.
- Good weldability
Compatible with TIG, MIG, and spot welding; post-weld heat treatment can optimize mechanical performance.
- Lightweight material
Low density helps reduce overall weight while maintaining structural performance.
Applications
- Automotive outer body panels.
- Doors, hoods, roofs, and trunk lids.
- Automotive structural and reinforcement panels.
- Lightweight vehicle body systems.
