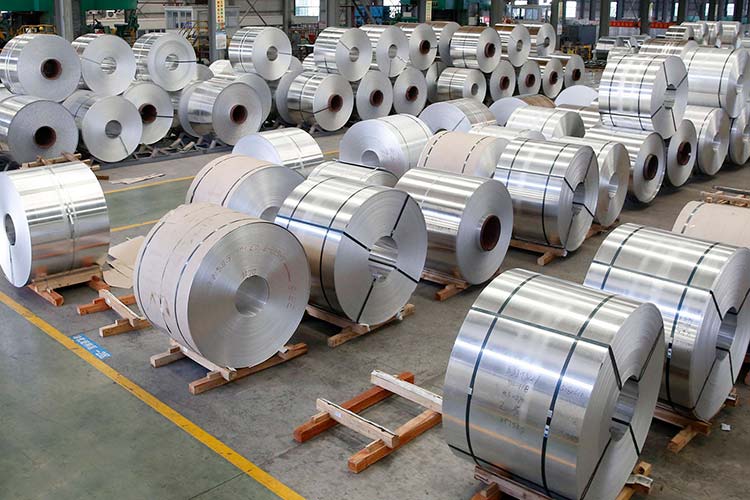

2024 aluminum coil is a heat-treatable aluminum–copper–magnesium alloy in the 2xxx series. It is well known for its high strength, excellent fatigue resistance, and good machinability, making it one of the most widely used alloys in the aerospace and high-performance structural industries. Due to its relatively lower corrosion resistance, 2024 aluminum sheet is often supplied with cladding or surface treatments to enhance durability.
Specifications
| Item | Specification |
|---|---|
| Alloy / Grade | 2024 |
| Chemical Composition (%) | Cu 3.8–4.9, Mg 1.2–1.8, Mn 0.3–0.9, Fe ≤ 0.50, Si ≤ 0.50, Zn ≤ 0.25, Ti ≤ 0.15, Al Balance |
| Series | 2000 Series (Al-Cu-Mg) |
| Temper | O, T3, T4, T6, T351 |
| Thickness (mm) | 0.5 – 200 |
| Width (mm) | 100 – 2600 |
| Length (mm) | 1000 – 12000 (Customizable) |
| Surface Finish | Mill Finish, Alclad, Anodized, Painted |
| Standard | ASTM B209, EN AW-2024, AMS 4037 / 4041 |
Description
2000 Series Aluminum Sheet
- High Mechanical Strength
Provides an excellent strength-to-weight ratio, suitable for demanding structural and load-bearing applications.
- Excellent Fatigue Resistance
Performs reliably under cyclic loading, making it ideal for aerospace and transportation components.
- Good Machinability
Supports precision machining, drilling, and milling with stable dimensional accuracy.
- Heat Treatable Alloy
Mechanical properties can be significantly improved through solution heat treatment and aging processes.
- Widely Proven Performance
A mature alloy with long-term application history in high-performance engineering fields.
Applications
- Aircraft structures and fuselage panels.
- Aerospace components and wing skins.
- High-strength structural parts.
- Military and defense equipment.
- Precision mechanical and engineering components.
