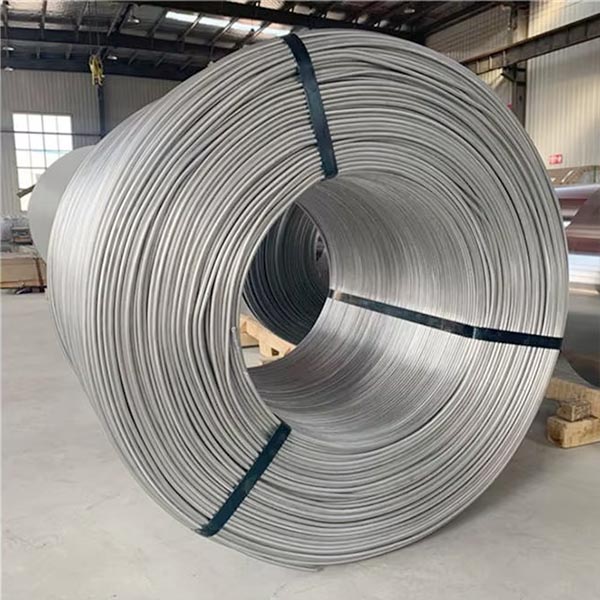

5052 Aluminum Wire is a non-heat-treatable aluminum alloy belonging to the Al–Mg series. It is well known for its excellent corrosion resistance, good fatigue strength, and superior formability. Compared with 5005 aluminum wire, 5052 offers higher strength while maintaining good workability, making it one of the most widely used alloys in the 5xxx series.
Description
Features
- Excellent Corrosion Resistance
The higher magnesium content provides outstanding resistance to seawater, marine atmospheres, and industrial environments.
- Higher Strength than 5005
、Offers improved tensile strength and fatigue resistance compared with lower-magnesium aluminum alloys.
- Good Formability and Ductility
Suitable for bending, drawing, and forming processes without cracking.
- Non-Heat-Treatable Alloy
Strength is achieved through strain hardening rather than heat treatment.
- Good Weldability
、Performs well in common welding processes with reliable joint strength.
Specifications
| Item | Description |
|---|---|
| Alloy | 5052 |
| Aluminum Content / Chemical Composition | Al: Balance, Mg: 2.2–2.8%, Cr: 0.15–0.35%, Si: ≤ 0.25%, Fe: ≤ 0.4%, Cu: ≤ 0.1%, Mn: ≤ 0.1%, Zn: ≤ 0.1%, Ti: ≤ 0.15%, Others: ≤ 0.15% |
| Temper | O / H32 / H34 / H36 (customized) |
| Diameter Range | Customized according to requirements |
| Tensile Strength | According to temper |
| Elongation | According to temper |
| Surface Finish | Bright, mill finish, or anodizing grade |
| Straightness | According to standard or customized |
| Length | Coil, spool, or cut length |
| Standards | EN, ASTM, or customized |
Applications
- Marine and Offshore Components
Widely used in marine fittings, hardware, and offshore applications due to excellent seawater corrosion resistance.
- Automotive and Transportation Parts
Applied in brackets, clips, and structural components requiring strength and durability.
- Pressure Vessels and Containers
Used for containers and pressure-related components due to good strength and corrosion resistance.
- General Fabrication and Formed Parts
Suitable for bent, drawn, and formed aluminum wire products.
- Industrial Fasteners and Connectors
Used for corrosion-resistant fasteners, clips, and mechanical connectors.

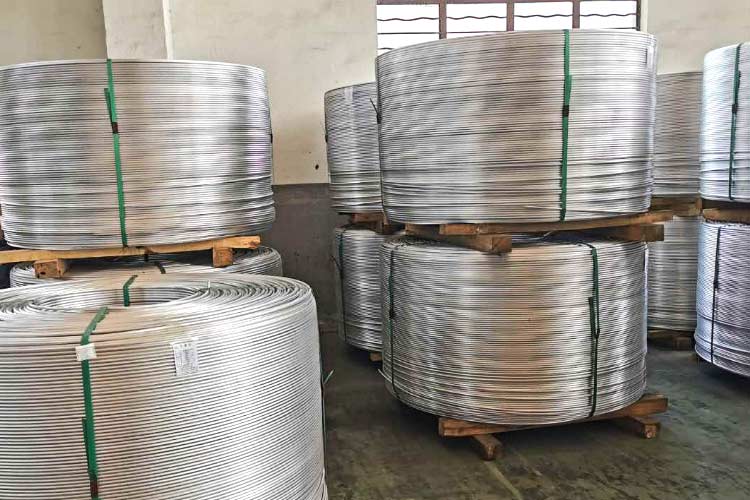

Packaging
| Packaging Type | Weight | Dimensions |
|---|---|---|
| Plastic Reel | 7 kg/reel | Outer Diameter: 270 mmBore Diameter: 52 mmHeight: 105 mm |
| Drum (Small) | 25–100 kg/drum | Outer Diameter: 460 mm Height: 280 mm |
| Drum (Medium) | 25–100 kg/drum | Outer Diameter: 570 mm Height: 380 mm |
| Drum (Large) | 25–100 kg/drum | Outer Diameter: 570 mm Height: 740 mm |
| Bundle | 10–40 kg/bundle | Outer Diameter: 570 mm Inner Diameter: 340 mm Height: 170 mm |
