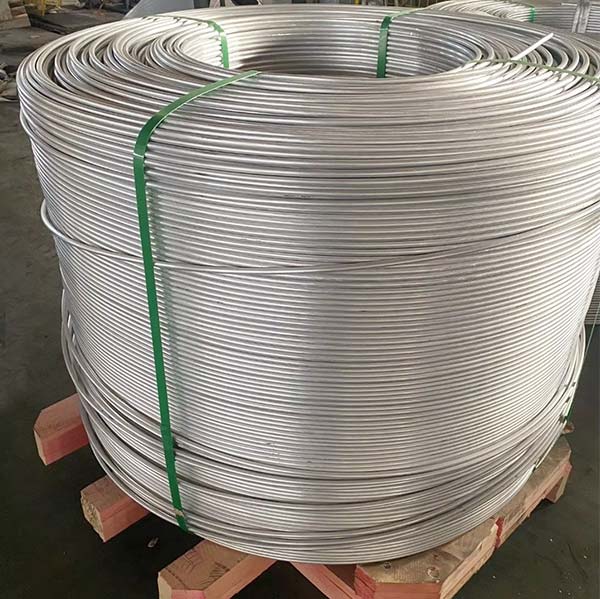

1090 aluminum wire is a commercially pure aluminum wire with a minimum aluminum content of 99.0%. It offers excellent corrosion resistance, high electrical and thermal conductivity, and very good formability. Compared with 1100 aluminum, 1090 provides slightly higher purity, making it ideal for electrical applications, chemical environments, and industrial uses where maximum conductivity and corrosion resistance are required.
Description
Features
- Excellent Corrosion Resistance
Resists rust, oxidation, and chemical attack, suitable for humid, marine, and chemical environments.
- Superior Electrical Conductivity
High conductivity makes it ideal for power transmission, grounding wires, cable shielding, and transformer windings.
- Outstanding Thermal Conductivity
Efficient heat transfer for electrical components, heating elements, and thermal management applications.
- Good Formability & Flexibility
Can be easily drawn, bent, twisted, or formed without cracking, enabling complex shapes and precise components.
- Weldable & Solderable
Compatible with most joining methods used in electrical and industrial applications.
- Lightweight & Non-Magnetic
Supports lightweight designs and does not interfere with magnetic fields in sensitive electrical applications.
- Durable & Long-Lasting
Maintains performance over long-term use under harsh environmental conditions.
- Cost-Effective
Combines high purity and excellent performance at a competitive price, making it ideal for a wide range of industrial applications.
Specifications
| Item | Specification |
|---|---|
| Alloy | AA 1090 |
| Aluminum Content / Chemical Composition | Al ≥ 99.0%, Fe ≤ 0.95%, Si ≤ 0.95%, Cu ≤ 0.05%, Mn ≤ 0.05%, Zn ≤ 0.10%, Ti ≤ 0.03%, Others ≤ 0.05% |
| Temper | O, H12, H14, H16 (customized) |
| Diameter Range | 0.2 – 12.0 mm |
| Form | Coil, spool, cut length |
| Surface Finish | Bright, smooth, oil-free |
| Electrical Conductivity | ≥ 59% IACS |
| Density | 2.71 g/cm³ |
| Tensile Strength | O temper: 70–110 MPa H14 temper: 95–135 MPa |
| Elongation | ≥ 20% (O temper) |
Packaging
| Packaging Type | Weight | Dimensions |
|---|---|---|
| Plastic Reel | 7 kg/reel | Outer Diameter: 270 mmBore Diameter: 52 mmHeight: 105 mm |
| Drum (Small) | 25–100 kg/drum | Outer Diameter: 460 mm Height: 280 mm |
| Drum (Medium) | 25–100 kg/drum | Outer Diameter: 570 mm Height: 380 mm |
| Drum (Large) | 25–100 kg/drum | Outer Diameter: 570 mm Height: 740 mm |
| Bundle | 10–40 kg/bundle | Outer Diameter: 570 mm Inner Diameter: 340 mm Height: 170 mm |
Typical Applications
- Electrical conductors and grounding wires.
- Cable shielding and aluminum braiding.
- Transformer windings and coils.
- Chemical equipment and corrosion-resistant components.
- Packaging wires, sealing wires, and general-purpose binding wires.
- Rivets, fasteners, and low-load mechanical parts.
